Consistent efficiency

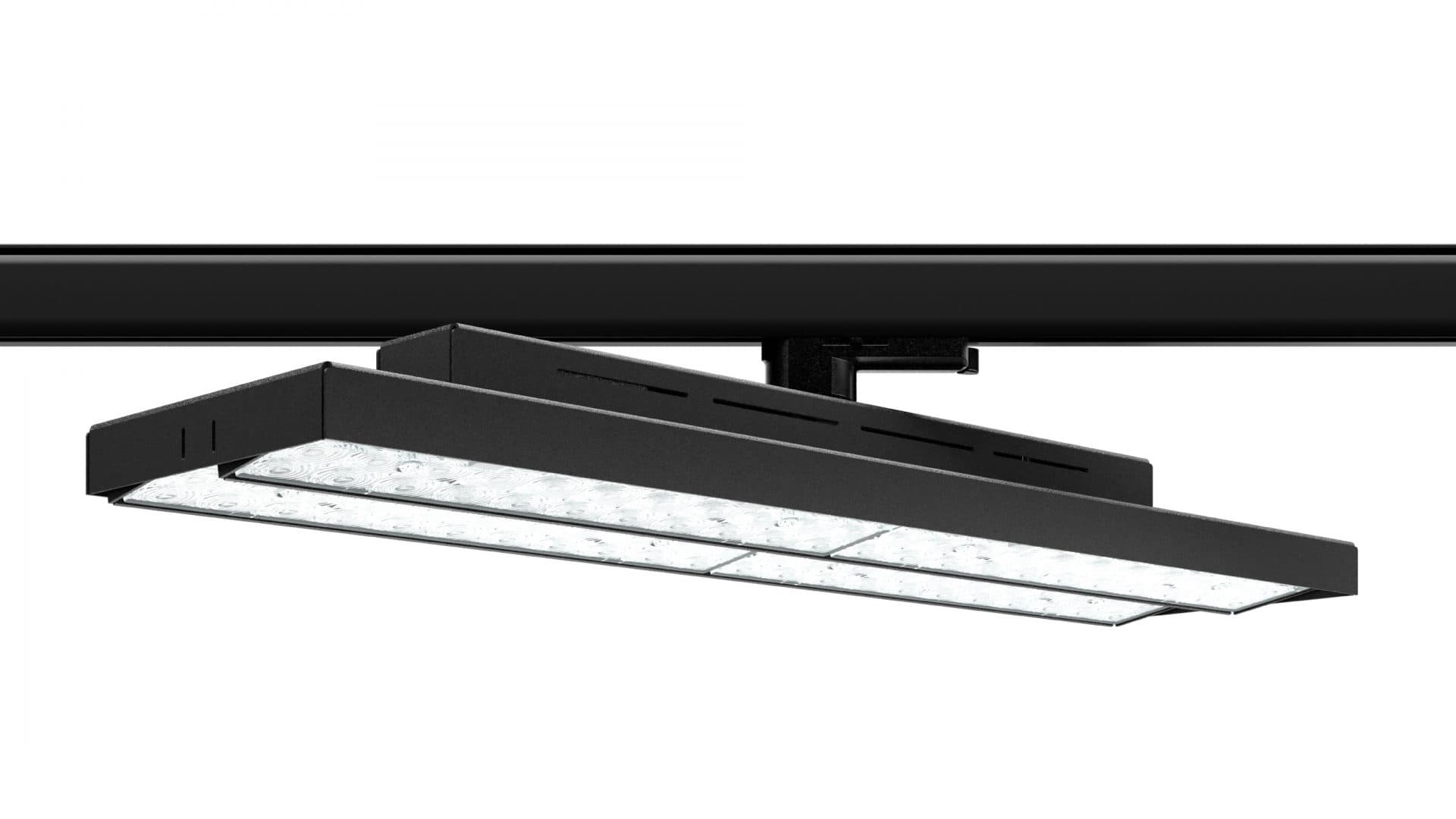

For customers who value flat, even illumination. 132 state-of-the-art LEDs behind just as many 3D optics create an extraordinarily even and brilliant light pattern and an amazing range of variants. No ray of light is wasted here. The additional swiveling optics make subsequent fine adjustment possible; In this way, the entire light can be perfectly adjusted to specific situations. The functional luminaire design blends calmly into the ceiling and shows through the clearly distinguishable light pattern: This can only be the most modern, energy-efficient LED technology.

Product Details
TP1 D Zeichenfläche 1
  • uniform design language, material and surface quality
  • Good combination option with other busbar products
  • a lamp with different optics (large-area room illumination, targeted illumination of product fronts - walls on one or both sides)
  • Uniform ceiling appearance with different requirement profiles for the radiation characteristics
  • rotatable and pivotable
  • optimally adaptable to different aisle widths and distances

Wattage27 - 55 W
Luminous class4.000 - 9.000 lm
Light efficiencybis zu 151 lm / W
Housing colorweiß, schwarz
LifetimeL80 B10 / 50.000 h
ControllableStandard & Bluetooth
DiameterLänge 586 mm, Höhe 91 mm
Beam angleAsymmetrisch, Symmetrisch, Wide
Color consistancyinitial MacAdam 3 SDCM
Light color3.000 / 4.000 K
CRIra >80 / ra >90
  • Lx 23 ICON BEG
  • Lx 23 ICON eyeconex
  • Lx23 Icons final HICRI
  • Lx23 Icons Gehäusefarben lx23 ICON Farbe schwarz n
  • Lx23 Icons Gehäusefarben lx23 ICON Farbe weiß
