DLL1

Sophisticated, glare-free lighting.

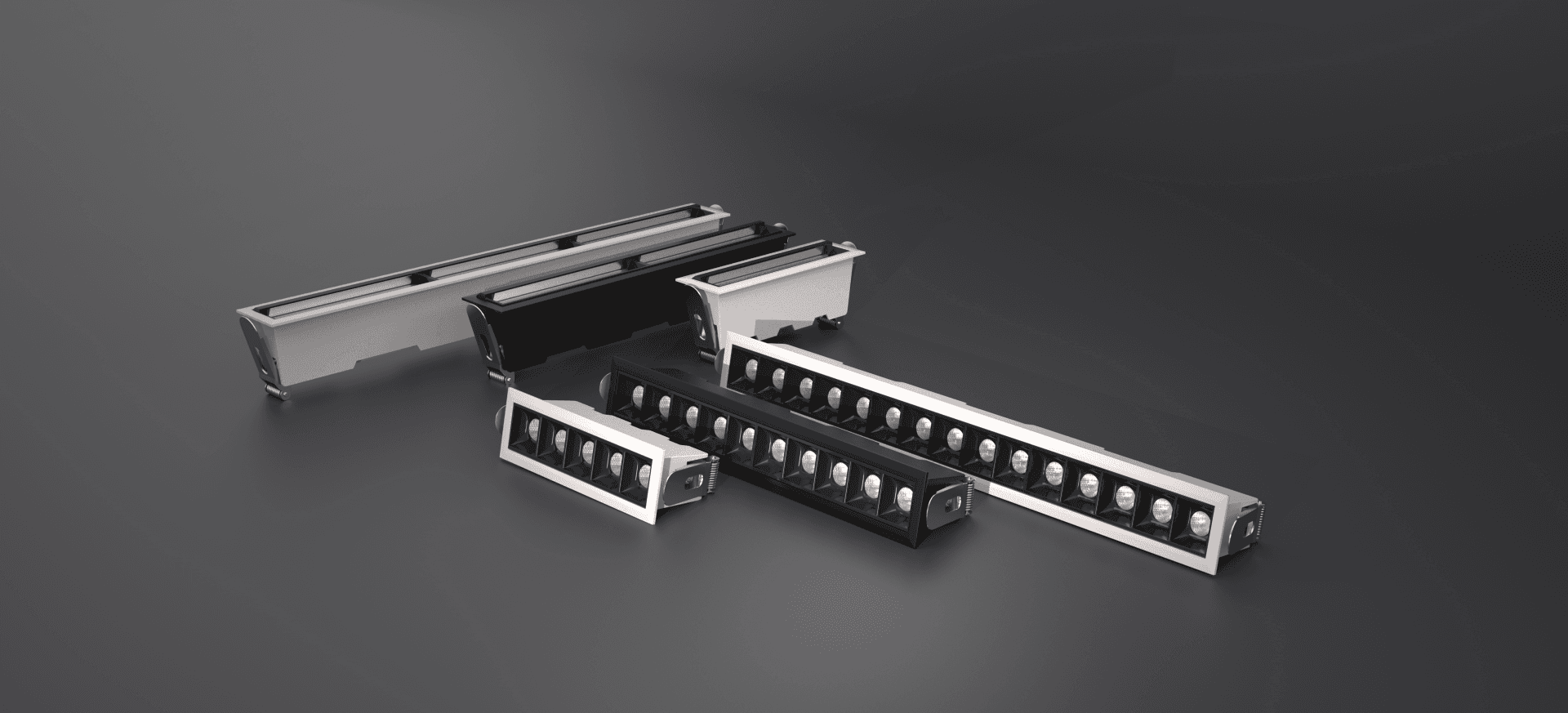

Linear recessed ceiling and wall light. Particularly suitable for demanding, glare-free lighting (UGR <10) and ideal for high performance with low ceiling installation depths. Available in three length models. Housing made of aluminum powder-coated in black and white powder paint. Optimized visual comfort thanks to the optical system consisting of a mini reflector and black anti-dazzle louvre. High power LEDs with increased color rendering (CRI ra >90). Light intensity distributions rotationally symmetrical in medium and wide beam. Installation using spring clips. Interchangeable and removable LED unit with external control gear.


Product Details
Lx23 DLL1 Website Produktdetails
  • Sophisticated glare-free lighting (UGR <10)
  • Low ceiling installation depth with high performance at the same time

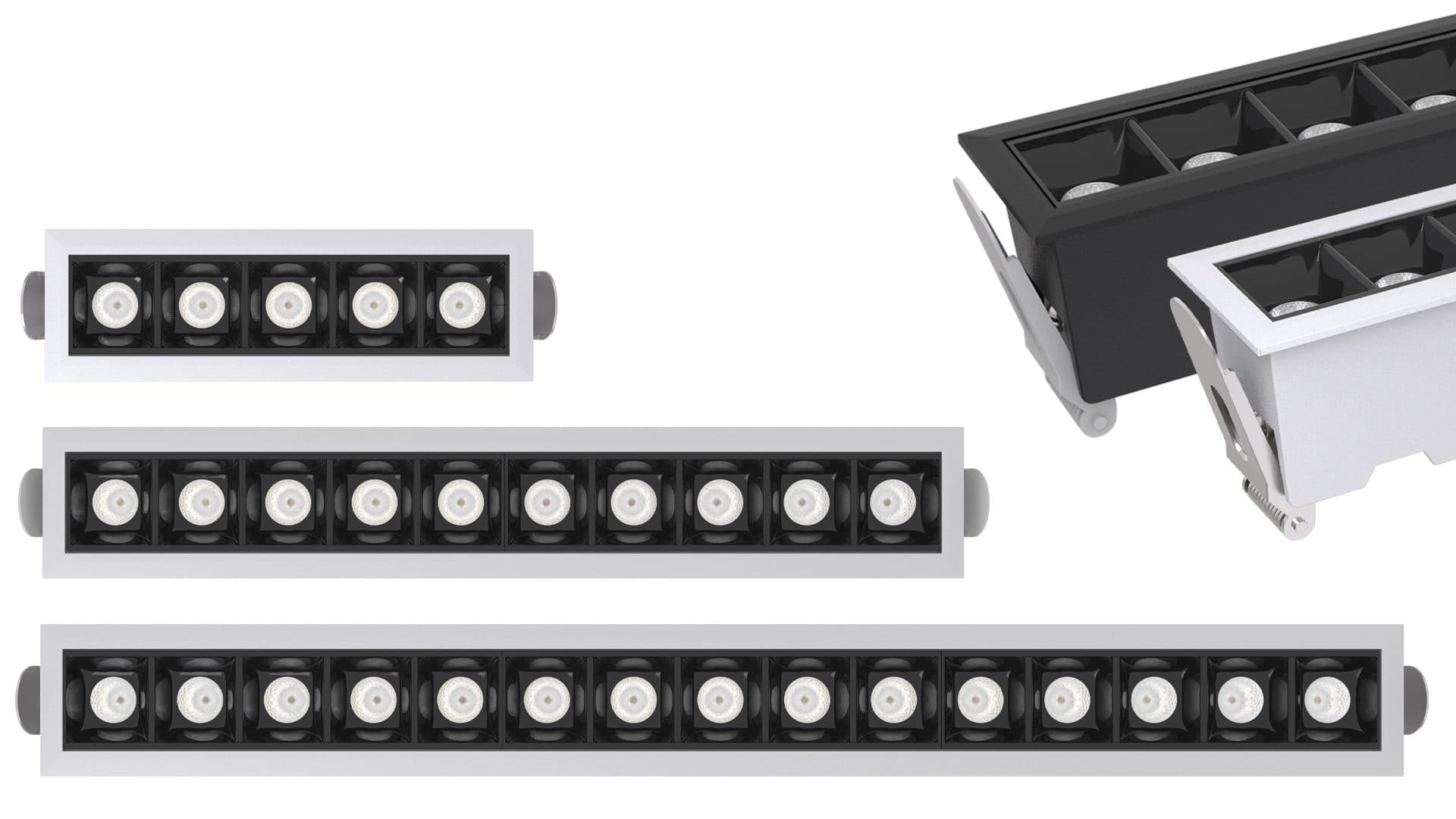

  • available in three length versions
  • Standard light colors with high CRI
  • also available in an asymmetrical wallwasher version

Quickinfo
Wattage12 W - 35 W
Length147 mm / 279 mm / 411 mm
Housing colorweiß / schwarz
Luminous classbis 2100 lm
Anti-glareUGR <10
Light color2.700 / 3.000 / 4.000 K
CRIra >90
Color consistancyinitial MacAdam 3 SDCM
ControllableStandard / DALI
LifetimeL80 B10 / 65.000 h
  • Lx 23 ICON Dali
  • Lx23 Icons final HICRI
  • Lx23 ICON UGR
  • Lx23 ICON PLATZHALTER
  • Lx23 Icons Gehäusefarben lx23 ICON Farbe weiß
  • Lx23 Icons Gehäusefarben lx23 ICON Farbe schwarz n
