New products


Uncompromising in all facets.

Professional recessed spotlight series in a wide variety of variants for high-quality applications in architecture, exhibitions, offices and home applications. Anti-glare and efficiency-optimized (up to 136 lm/W) optical system (UGR up to <4) with high color rendering (CRI >90). Including external control gear via plug connection. Available as standardized versions or for individual configuration of over 5000 variants using various reflectors and secondary optics.

Product Details
ESP1 SXX Details Web composit2
  • Particularly high visual comfort
  • three different performance classes
  • three different light colors and tunable white (1800-4000K)
  • High CRI >90, High efficiency (up to 136lm/W)
  • Additional optical accessories available: Linear Spread, Honeycomb

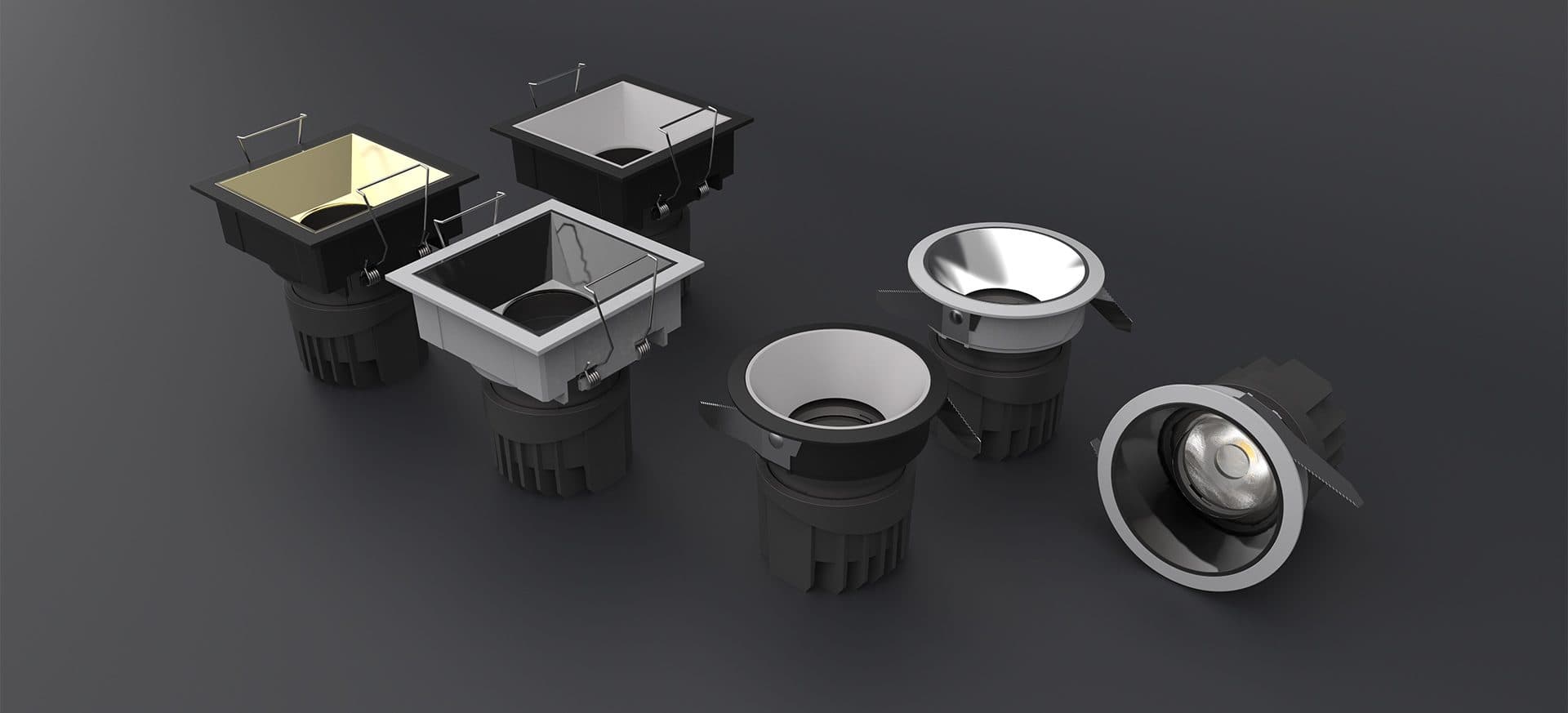

  • Different reflectors available: matt black, silver, white, matt gold
  • As an ESP1 individual, it can be combined into >5000 variants

Wattage8 W / 14 W / 19 W
Luminous class1.000 lm / 1.500 lm / 2.000 lm
Light efficiencybis zu 136 lm/W
Light color2.700 / 3.000 / 4.000 K / TW 1.800-4.000 K (DALI DT8)
CRIra >90
Beam angle25°, 40°, 55°
Color consistancyinitial MacAdam 3 SDCM

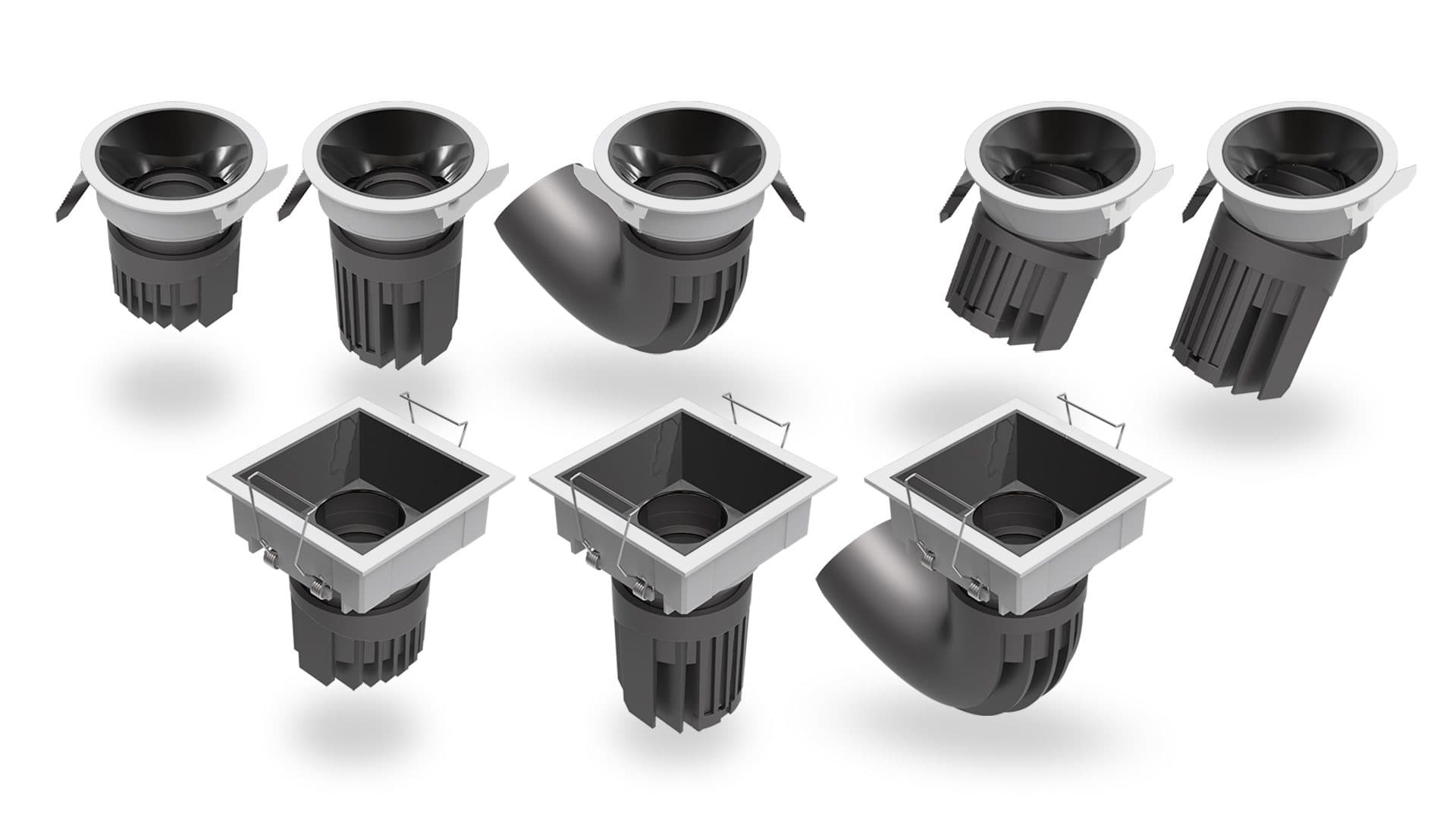

Typesstarr / schwenkbar
Housing typesrund / eckig
Housing colorweiß / schwarz
LifetimeL90 B10 / 50.000 h
CutoutØ 68 mm
  • Lx23 Icons final v2 rgb 250723 LOW UGR
  • Lx23 Icons final v2 rgb 250723 HIGH CRI
  • Lx23 Icons final v2 rgb 250723 02
  • Lx23 Icons final v2 rgb 250723 01
  • Lx23 Icons final v2 rgb 250723 47
  • Lx23 Icons Gehäusefarben lx23 ICON Farbe schwarz n
  • Lx23 Icons Gehäusefarben lx23 ICON Farbe weiß
Product information
Light data
